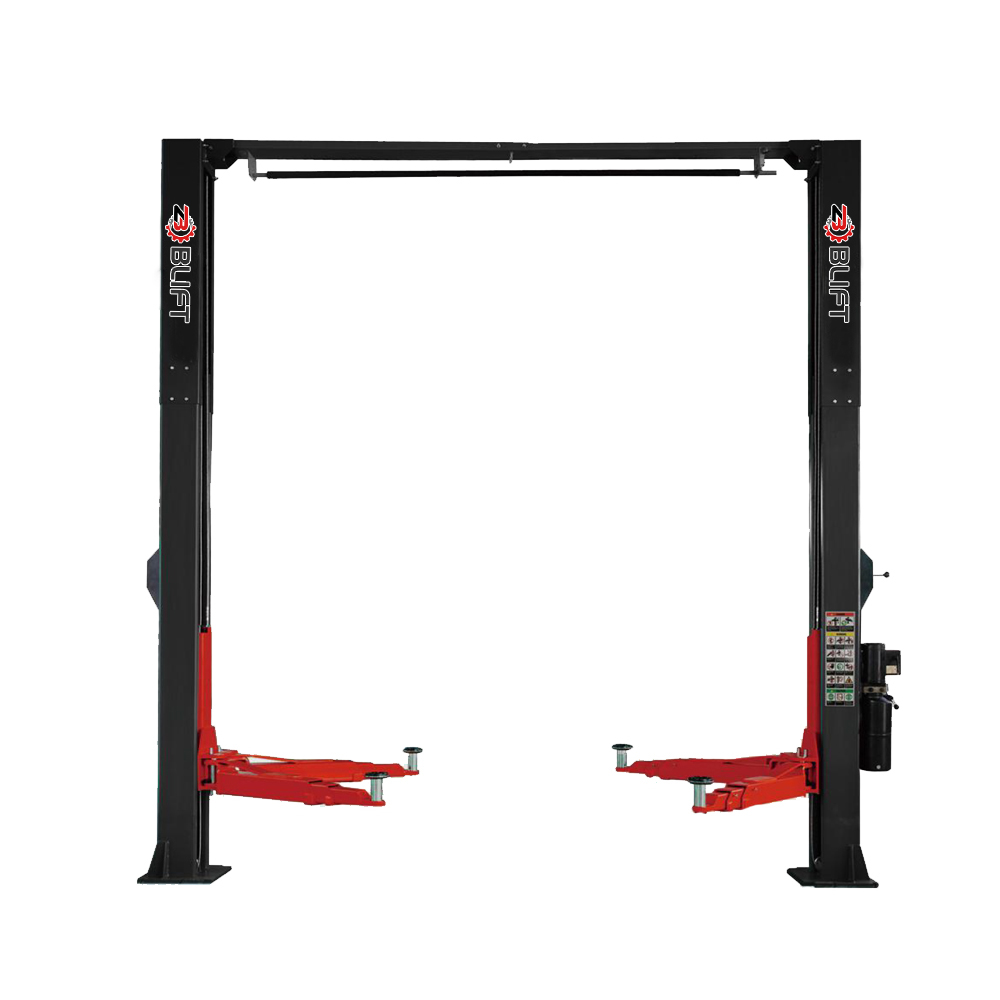

CHARACTERISTICS:
✦ 5-Ton Heavy Master: 30kW dual VFD (≥28cm/min lift)
✦ AI-Powered Release: Electro-hydraulic dual system (<0.2s response)
✦ 5-Layer Safety: PLC interlock × mechanical hooks × overload sensor × voltage guard ✦ backup manual release
✦ EV/Supercar Optimized: 80mm ultra-slim deck (scan/battery service)
✦ Data Span:7m｜Lift:3m｜Max Width:3300mm

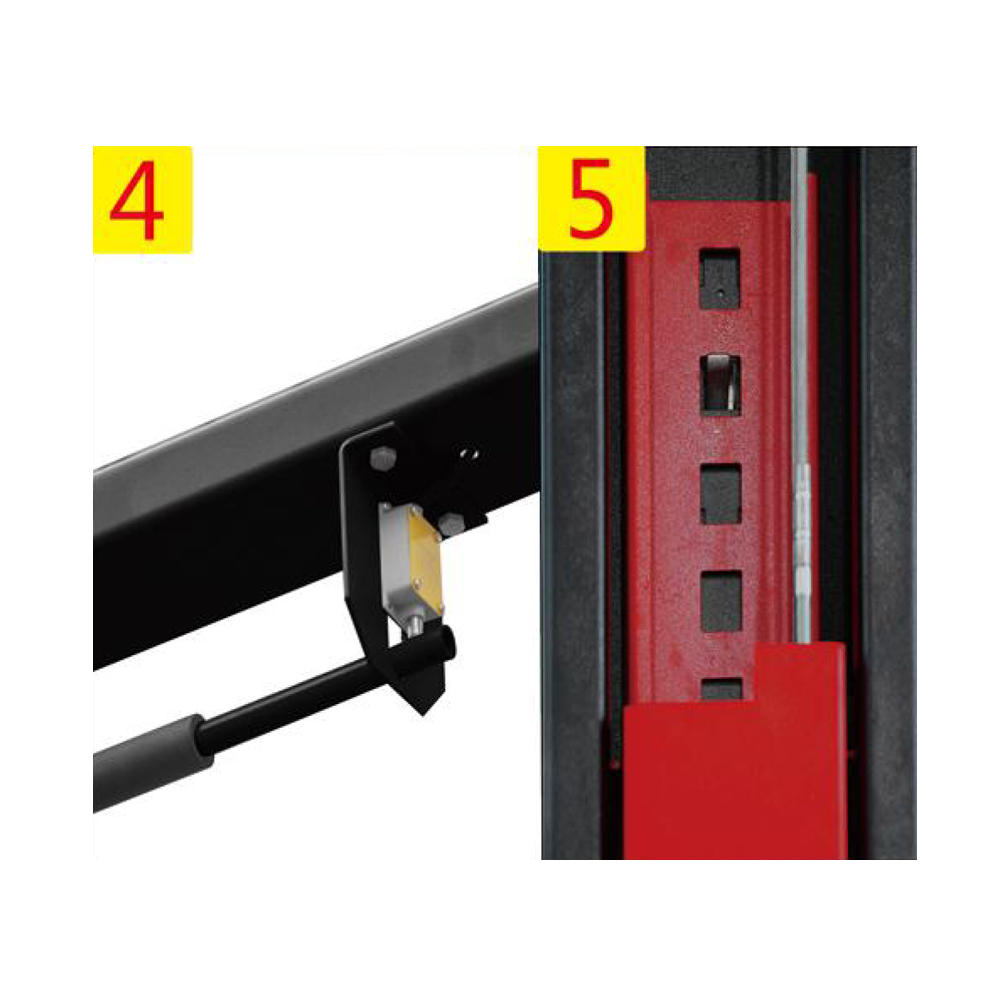

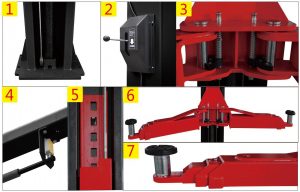

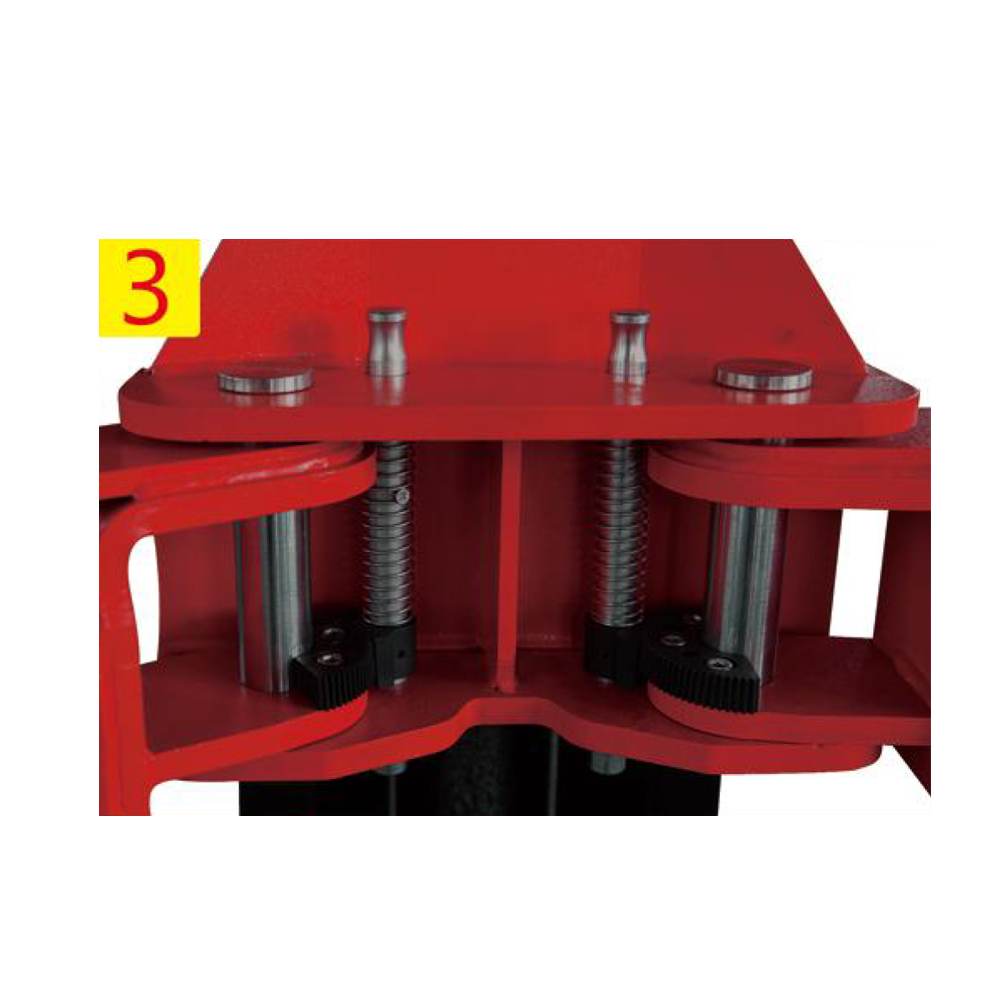

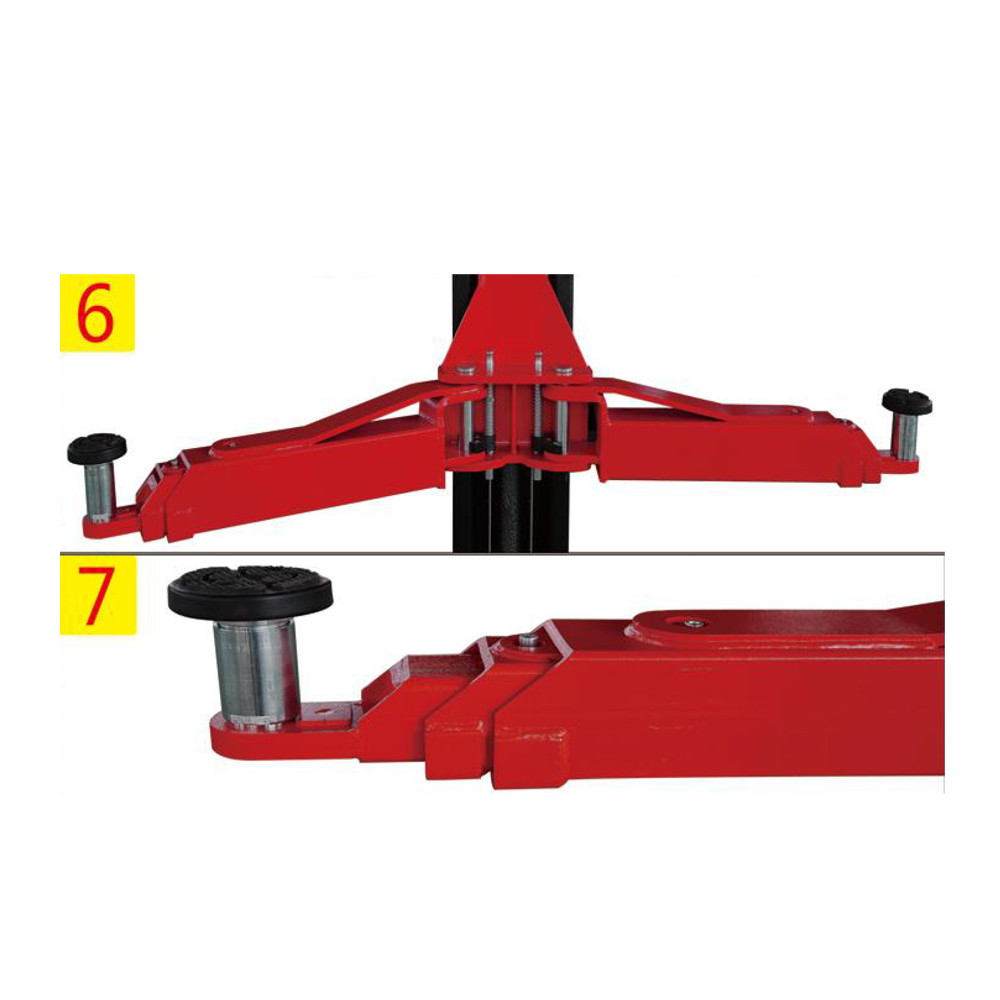

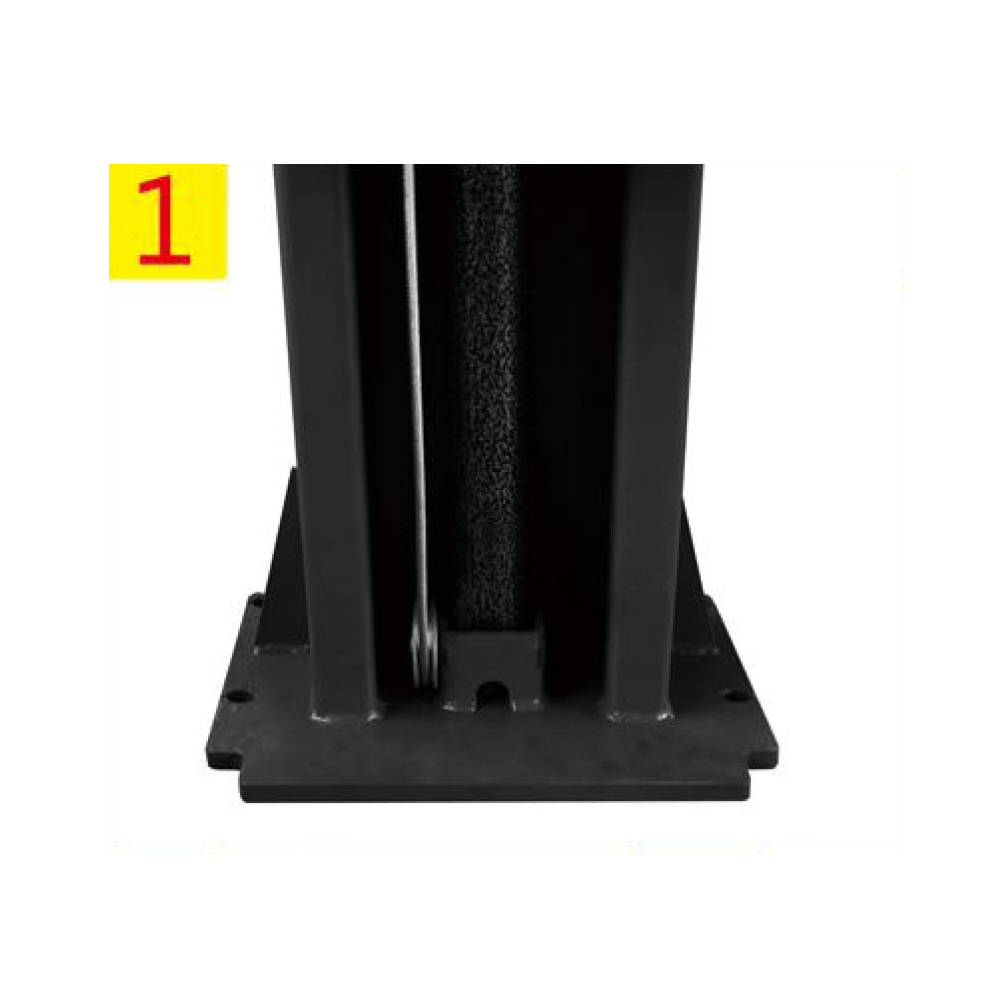

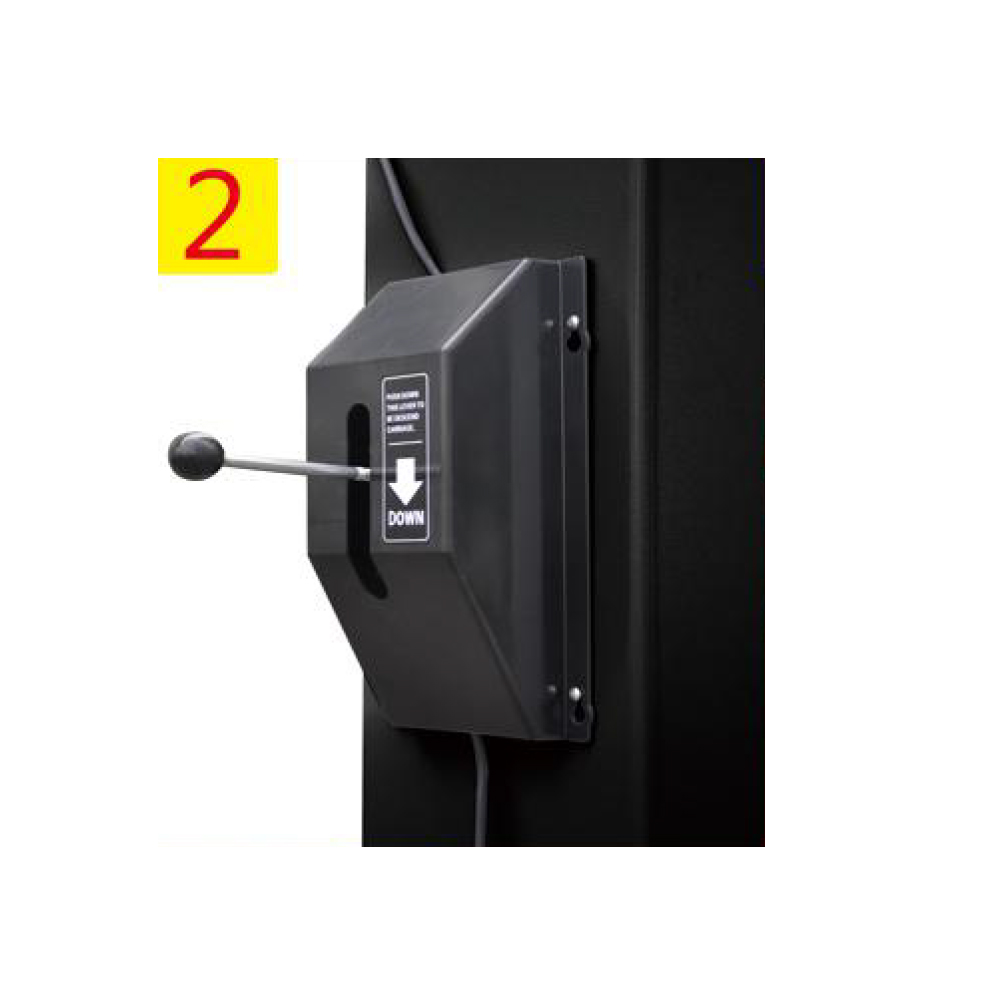

DETAILED DRAWINGS:

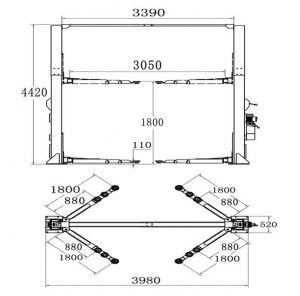

DIMENSIONS:
Machine package size
Length…………………………2945mm
Width………………………….520mm
Height………………………….937.5mm
Weight…………………………863.15kg
Beam package size
Length………………………….1940mm
Width…………………………..320mm
Height…………………………..200mm
Weight…………………………..30.5kg
Motor unit package size
Length…………………………….820mm
Width………………………………310mm
Height……………………………..250mm
Weight……………………………..22kg
Total 3packages
TOTAL WEIGHT:915.65KG
