TECHNICAL SPECIFICATIONS:
Rim clamp from outside:—————–9”-21”
Rim clamp from inside:——————-13”-25”
Max.wheel diameter:———————-1050mm
Max. tire width:—————————–3”-14”
Working pressure:————————–8-10bar
Voltage:—————————————-380V/220V/110V
Power:——————————————0.75kw-1.1kw
Complete machine packing size:———1100x1000x1750mm
Auxiliary hand packing size:—————1100x500x300mm
Split machine packing size:—————-1120x900x920mm
Net weight:————————————226kg
Gross weight:———————————-248kg
Auxiliary hand weight:———————–82kg
CHARACTERISTICS:
✦ Enhanced S41 hexagon shaft with better intensity to avoid mechanical deformation during working.
✦ Clamping jaw is equipped with a protective sleeve to provide more comprehensive protection for the tires and rims.
✦ Equipped with mechanical arm which makes mounting and demounting tire more quicker and easier.
✦ The clamping jaw is made of precision steel cast which is firm and durable.

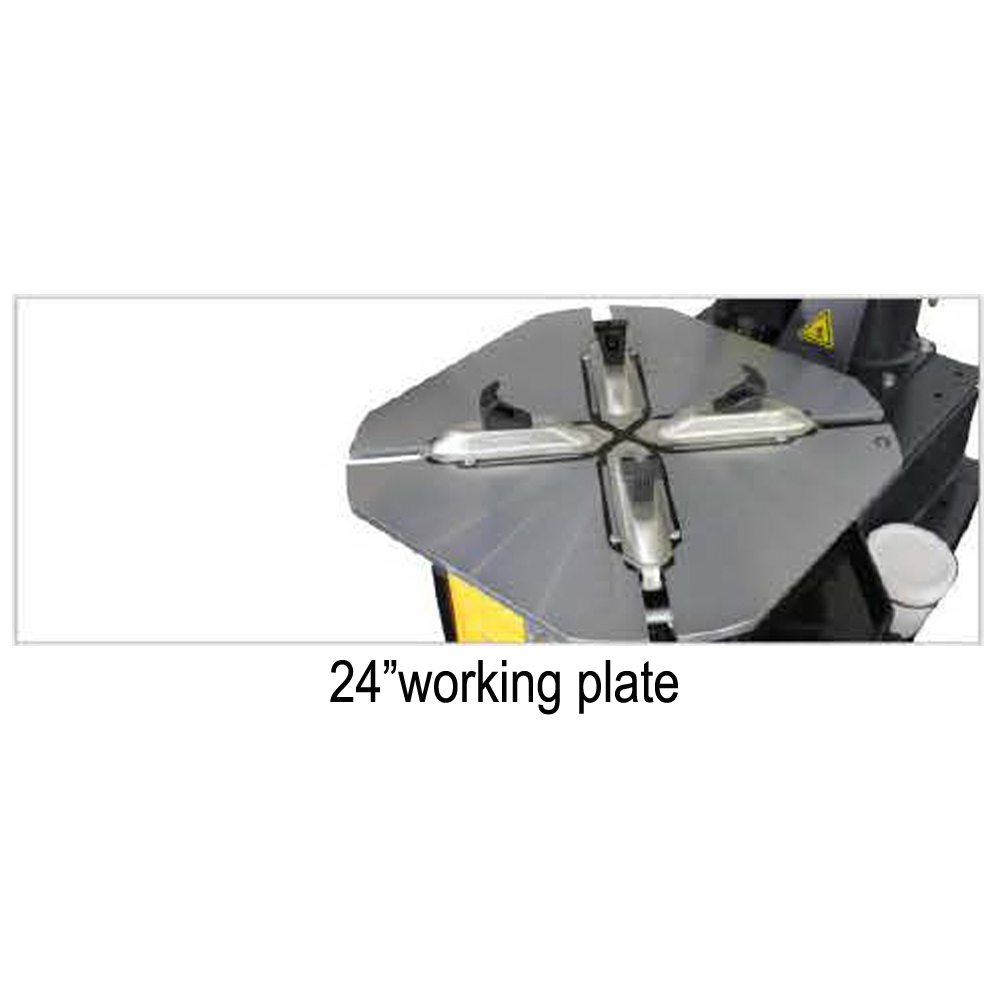

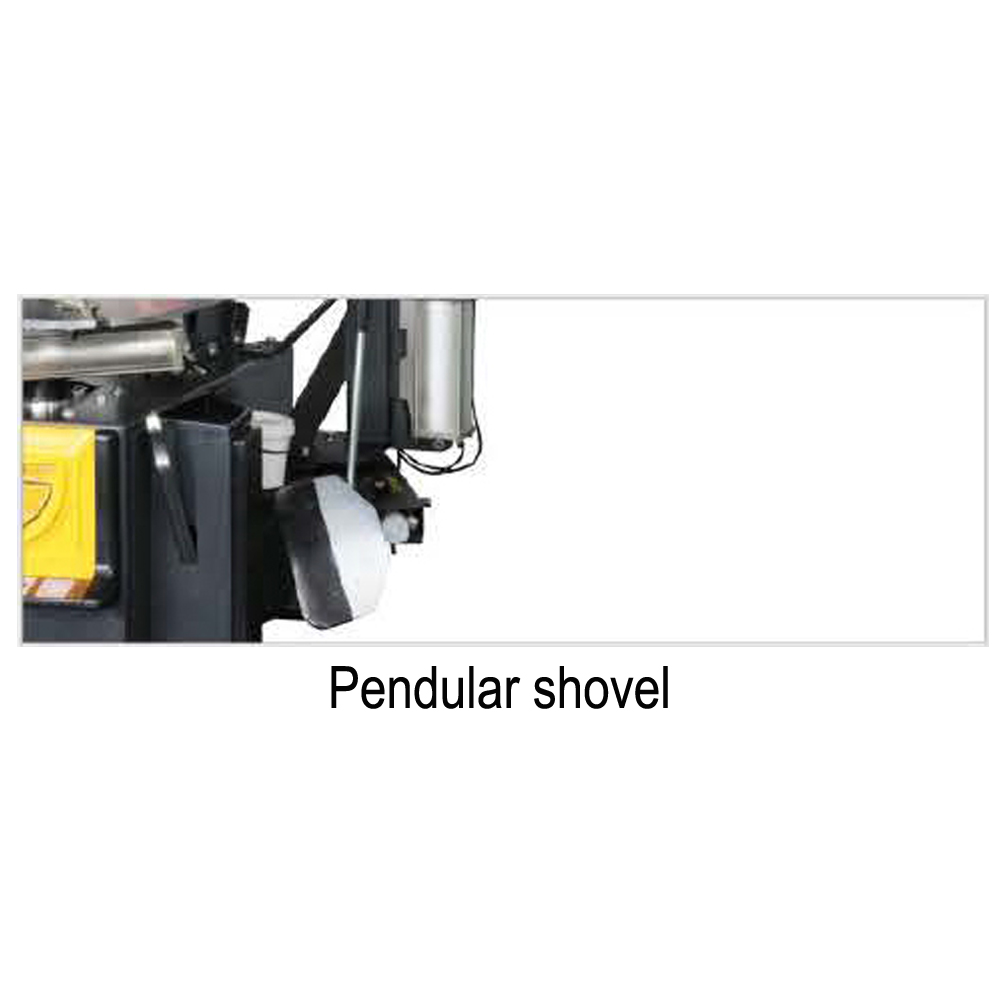

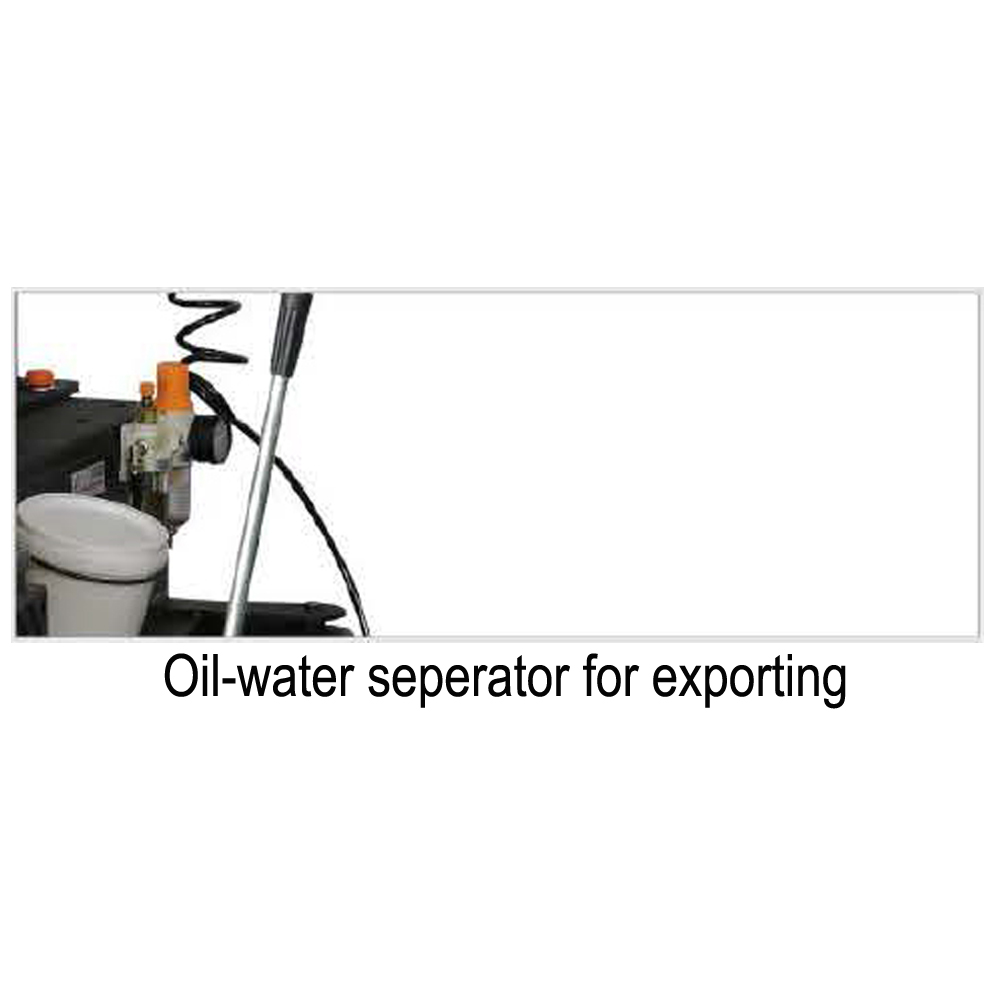

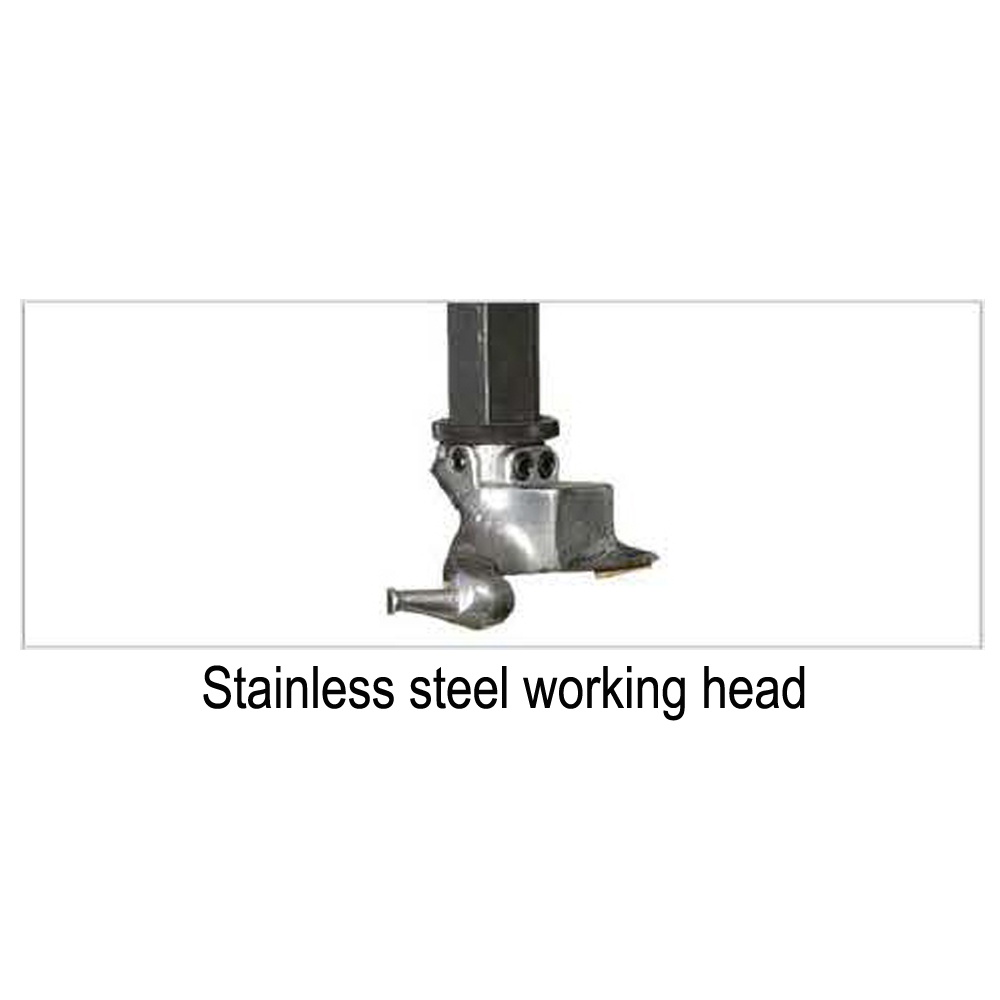

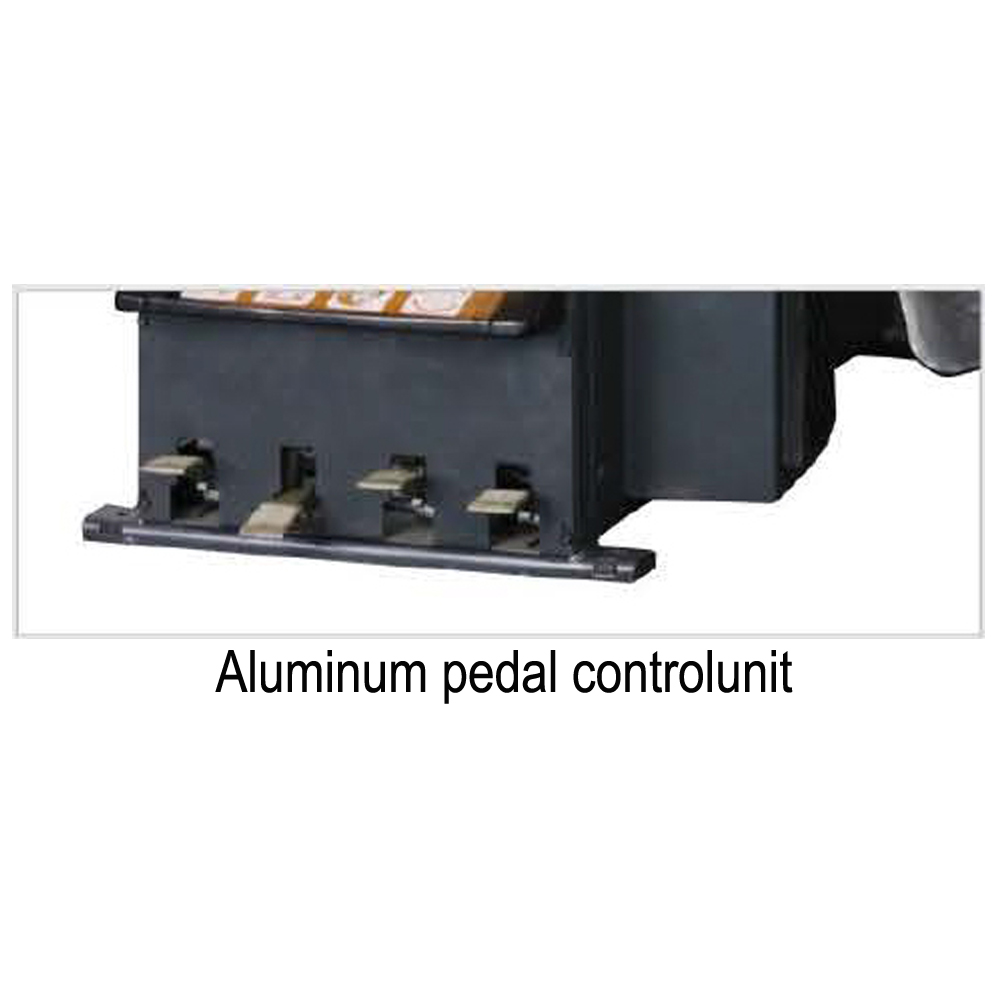

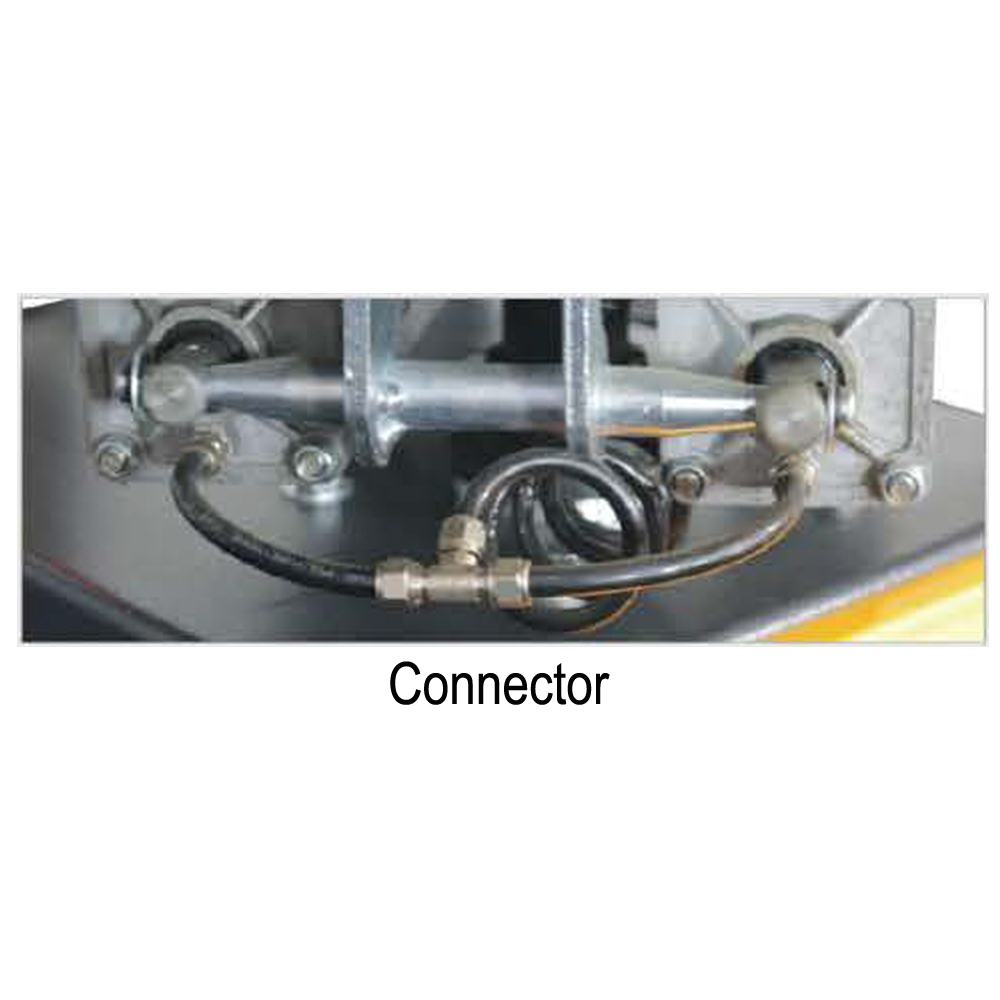

DETAILED DRAWINGS:
